FuG Elektronik SHV Series Coaxial Connector Technology Data

R 317 series high voltage coaxial connector NIM standard

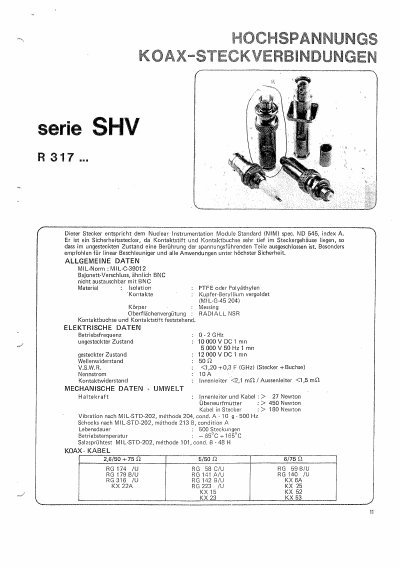

FuG Elektronik SHV Series Coaxial Connector Technology Data - cover page
Brand
FuG
Category
Other Electronics
Document type
Datasheet
Language
German
Pages
2
File format
PDF
File size
124 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
4EAD62FE6850E6BA6C8FFA45A7A55152
PDF
FuG Elektronik SHV Series Coaxial Connector Technology Data PDF

About this manual

This document provides technical data for the FuG Elektronik SHV series of coaxial connectors. It describes a safety connector designed to meet MIL-C-39012 standards, featuring a bayonet closure similar to BNC but not interchangeable with it. The connector is recommended for linear accelerators and applications requiring high security due to its deep contact pins that prevent voltage part exposure when unplugged. This manual is written in German.

What's inside

  • Allgemeine Daten
  • Elektrische Daten
  • Mechanische Daten - Umwelt
  • Koax-Kabel
  • Kabelbuchse
  • Kabelstecker

Specifications

MIL-NormMIL-C-39012
Closure TypeBayonet-Verschluss, ähnlich BNC
Operating Frequency< 2 GHz
Insulation MaterialPTFE or Polyethylen

Frequently asked questions

What is the stated operating frequency limit for this connector?

The SHV series coaxial connector has a maximum operating frequency of -2GHz.

Is this connector interchangeable with standard BNC connectors?

No, this connector is not exchangeable with BNC types despite having a similar bayonet closure.
