The document provides technical specifications of manual call points and DMX3000 emergency buttons for indoor applications, including their functions, colors, specifications, and order numbers.

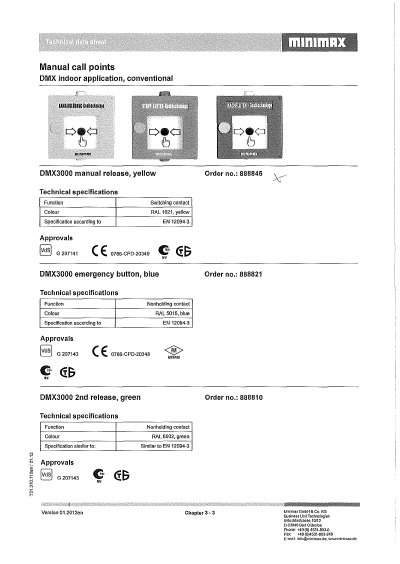

This document provides technical data for the Minimax DMX3000 series of indoor application emergency buttons. The product line includes three color-coded variants: a yellow manual release version with a switching contact, a blue non-holding contact version, and a green 2nd release version with a non-holding contact.
All models comply with specific European standards for fire protection equipment. The document lists the technical specifications, including function type (switching or non-holding contact), color codes according to RAL standards, applicable specification references (EN 12094-3 and EN 42094-3), and relevant approval numbers.
| Product Series | DMX3000 |
|---|---|
| Blue Button Function | Non-holding contact |
| Green Button Function | Non-holding contact |
| Yellow Button Colour Code | RAL 1021, yellow |
| Blue Button Colour Code | RAL 5015, blue |
| Green Button Colour Code | RAL 6002, green |
| Yellow Button Standard | EN 12094-3 |
| Blue Button Standard | EN 12094-3 |
| Green Button Standard | Similar to EN 42094-3 |
Both the blue and green variants feature a non-holding contact.
The DMX3000 manual release is RAL 1021, yellow.
The DMX3000 manual release follows specification EN 12094-3.
