The stainless steel series of seals includes the SM/SF .45 and SMG/SFG .45 seals. These are used in sensitive environments, food, health and laboratories. These seals can be used when exposed to temperature, oxidizing and corrosive environments (water and moisture). These seals require regular lubrication. Integrated greasers are available from size 8 (suffix G). The current range is from size 3 to 30. For larger sizes, please contact us.

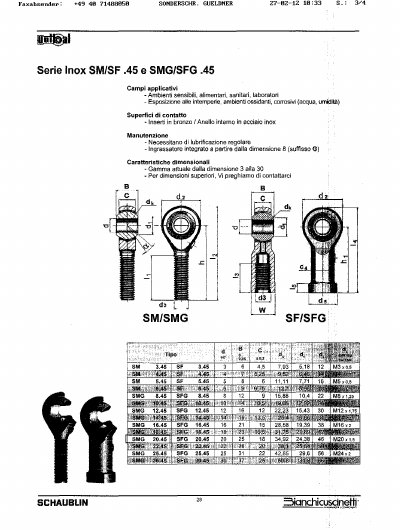

This document describes the Schaublin SM/SF .45 and SMGSFG .45 series Inox, intended for applications in sensitive, food, sanitary, and laboratory environments, as well as exposure to weather and oxidizing atmospheres. The series includes various sizes ranging from 3 to 30, with specific notes on ordering for larger dimensions. This manual is written in Italian.
| Application environments | Ambienti sensibili, alimentari, sanitari, laboratori |
|---|---|
| Contact surface inserts | Bronzo / Acciaio inox |
| Material Support | Acciaio inox X10CTNIS18-9 (1.4308) oppure X5CrNi18-10 (1.4301) |
| Material Inner Ring | Acciaio inox X46Cr13 (1.4034) |
| Insert Material | GC-CuSn7ZnPb |
| Size Range | 3 to 30 |
They require regular lubrication and include an integrated lubrication system starting from size 8.
The range covers sizes from 3 to 30, with larger sizes requiring contact with the manufacturer.
