SEIM PDA Series Screw Pump Technical Data

Technical parameters of PDA series valve screw pumps, including flow, pressure, temperature, speed, etc.

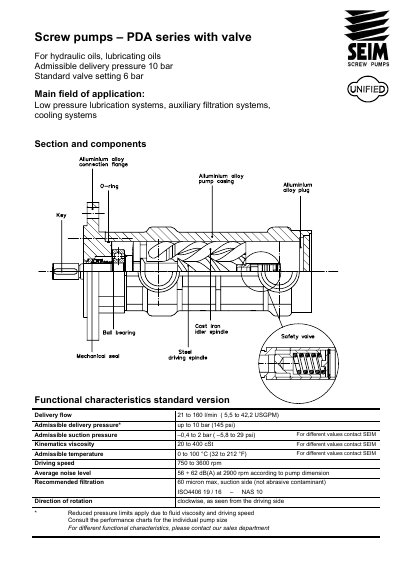

SEIM PDA Series Screw Pump Technical Data - cover page
Brand
Seim
Category
Other
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
74 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
328115662B8168C2B453621E586EE232
PDF
SEIM PDA Series Screw Pump Technical Data PDF

About this manual

This document provides technical specifications for the SEIM PDA series screw pumps equipped with a valve. These pumps are designed for use with hydraulic oils and lubricating oils in low-pressure lubrication systems, auxiliary filtration systems, and cooling systems. The pumps feature an aluminum alloy casing and are suitable for a wide range of operating conditions.

What's inside

  • Section and components
  • Functional characteristics standard version
  • Dimensional chart
  • Admissible delivery pressure
  • Driving speed
  • Recommended filtration

Specifications

Admissible delivery pressure10 bar
Standard valve setting6 bar
Delivery flow21 to 160 I/min
Admissible suction pressure-0,4 to 2 bar
Kinematics viscosity20 to 400 cSt
Admissible temperature0 to 100 °C
Driving speed750 to 3600 rpm
Average noise level56 + 62 dB(A)
Recommended filtration60 micron max

Frequently asked questions

What is the standard valve setting for the PDA series pump?

The standard valve setting is 6 bar.

What is the recommended maximum filtration size for the suction side?

The recommended filtration is 60 micron max on the suction side.

What is the direction of rotation for the PDA series pump?

The direction of rotation is clockwise, as seen from the driving side.
