This document is a product description of the FVUM and FVUG series filters of the Coval brand. The series filters have transparent oil tanks, which are convenient for observing the degree of contamination of the filter. The series filters have two specifications, M and G. The size of the M specification is 76.2*61.5*48*49.8mm, and the size of the G specification is 90.9*136.7*73.6*119.4mm. The series filters have G1/4 and G3/8 interfaces, and the working pressure is 1 to 10 Bar.

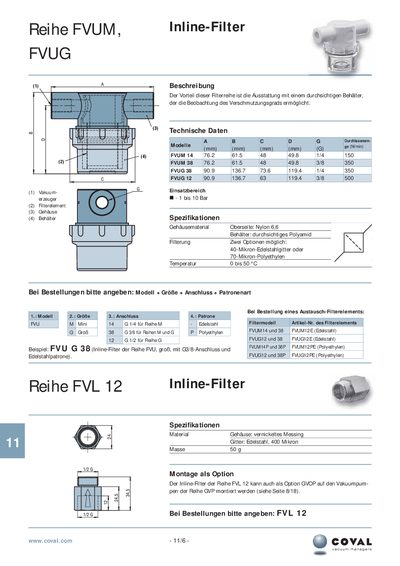

This document provides technical specifications for the Coval inline filter series, including models FVUM, FVUG, and FVL. A key feature of this series is the transparent container, which allows for direct observation of the contamination level during operation.
The document details dimensional data (diameter and length) and connection sizes for various models ranging from 1/4 inch to 3/8 inch. It also specifies material compositions, such as Nylon 6,6 housings with transparent polyamide containers or brass bodies with nickel plating, along with available filter element options like stainless steel grids or polyethylene filters. This manual is written in German.
| Maximum Temperature | Up to 50°C |
|---|---|
| Filtration Options | 40-micron stainless steel grid or 70-micron polyethylene |
| FVUM Housing Material | Nylon 6,6 |
| FVUM Container Material | Transparent polyamide |
| FVL Housing Material | Nickel-plated brass |
| FVL Filter Grid | Stainless steel, 400 microns |
| FVL Weight | 50g |
The series is equipped with a transparent container that enables observation of the contamination level.
Users can choose between a 40-micron stainless steel grid or a 70-micron polyethylene option.
