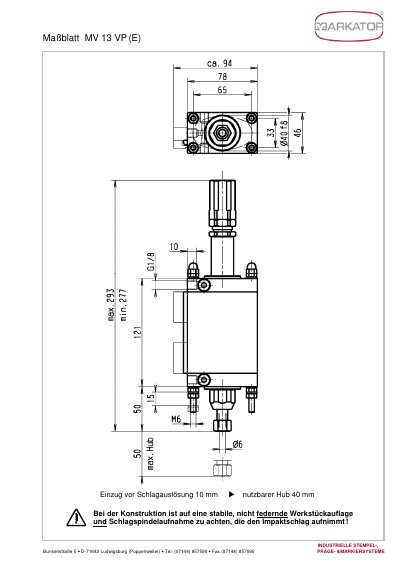

The document describes the features and characteristics of Maßblatt MV 13 VP (E) INDUSTRIELLE STEMPEL- and PRÄGE- & MARKIERSYSTEME.
This document provides technical specifications and construction guidelines for the MaBblatt MV 13 VP(E), an industrial stamping machine. The text highlights specific design requirements for the workpiece support and spindle housing to ensure stability and impact absorption during operation.
Key performance metrics mentioned include a stroke depth of 40 mm before impact and a required clearance of 10 mm prior to the start of the stroke. This manual is written in German.
| Usable stroke | 40 mm |
|---|
The manual states that an insertion of 10 mm is required before impact.
The text specifies a usable stroke of 40 mm for this product.
