This is an energy quality monitor, supports RS485, RS232, MBUS, PROFIBUS, LONWORKS, BACNET communication protocol, can measure voltage, current, power, energy and other parameters.

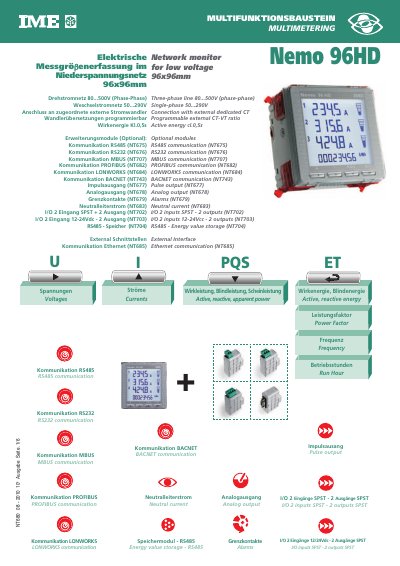

The document describes the IME NT680 Nemo 96HD, a compact (96x96mm) multifunctional block designed for electrical measurement and data acquisition in low-voltage networks. It supports both single-phase (50...290V) and three-phase (80...500V) line measurements. This manual is written in German.
| Dimensions | 96x96mm |
|---|---|
| Three-phase voltage range | 80...500V (Phase-Phase) |
| Single-phase voltage range | 50...290V |
| Active energy class | cl. 0,5s |
| Display type | LCD backlit |
| Reading update time | 1,1 seconds |
| Voltage accuracy | +0.2% + 1 digit |
| Current accuracy | +0.2% + 1 digit (10...120% In) |
| Frequency accuracy | + 0.15 Hz |
| Operating temperature range | -5...55°C |
The maximum current rating is 1.2 times the rated current (In).
The reading update cycle is 1.1 seconds.
The voltage measurement accuracy is +0.2% plus 1 digit.
