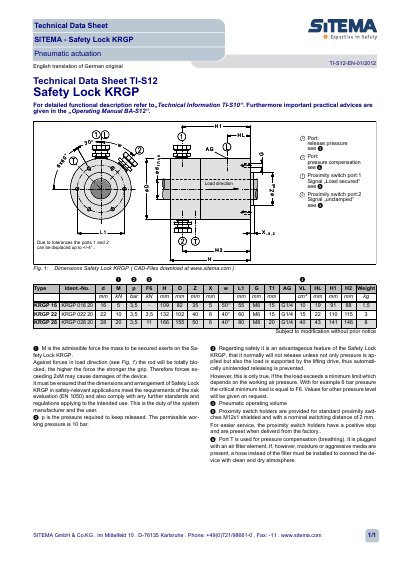

This is a technical data sheet for SITEMA KRGP safety lock, which mainly introduces the dimensions, load capacity, working pressure and other parameters of the product.
This document is a technical data sheet for the SITEMA Safety Lock KRGP series, specifically models KRGP 16, KRGP 22, and KRGP 28. It provides pneumatic actuation specifications, including admissible forces, release pressure, and working pressure limits.
The sheet includes a table with dimensional data and technical parameters for each model, such as nominal force, stroke, and port sizes. It also describes functional features like the proximity switch holders and pressure compensation port.
| Nominal force (KRGP 16) | 16 KN |
|---|---|
| Nominal force (KRGP 22) | 22 KN |
| Nominal force (KRGP 28) | 28 KN |
| Permissible working pressure | 10 bar |
| Proximity switch holder size | M12x1 shielded |
| Nominal switching distance | 2 mm |
The release pressure is denoted as F6 in the technical data.
The permissible working pressure is 10 bar.
The device supports standard proximity switches M12x1 shielded with a nominal switching distance of 2 mm.
