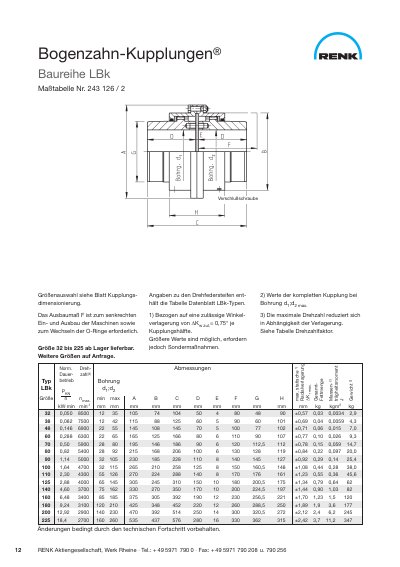

This document describes the features and characteristics of the 12 Bogenzahn-Kupplungen® Baureihe LBk series produced by RENK Aktiengesellschaft, including dimensions, maximum speed, weight, etc.
This document is a technical datasheet for the RENK LBK series of Bogenzahn couplings. It provides a table of dimensions and technical data for various coupling sizes ranging from 32 to 225.
The datasheet includes specifications such as permissible torque, maximum speed, and detailed dimensional drawings for mounting holes and shafts. It notes that larger sizes are available upon request and that specific measures may be required for larger values. This manual is written in German.
| Size Range | 32 to 225 |
|---|---|
| Manufacturer | RENK Aktiengesellschaft |
| Document Number | MaBtabelle Nr 243 126 7 2 |
It is designed to facilitate the installation and removal of machines as well as the replacement of O-rings.
Sizes ranging from 32 to 225 are available from stock, with larger sizes possible upon request.
The maximum rotational speed reduces by 0.75 for each coupling half depending on the shift amount.
