Hirschmann BAT-ANT-N-8G-DS-IP65 Directional Diversity Antenna Datasheet

BAT-ANT-N-8G-DS-IP65 is a directional antenna produced by Hirschmann for use in the 2.4 GHz band.

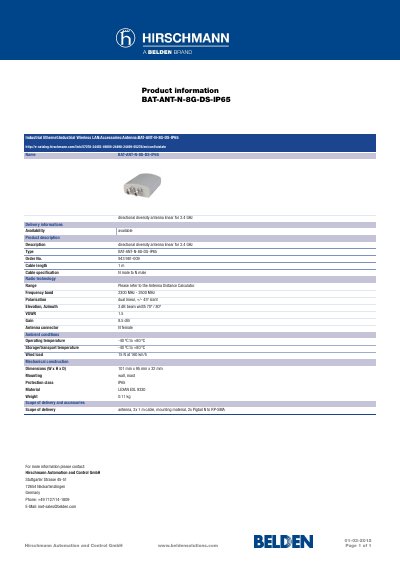

Hirschmann BAT-ANT-N-8G-DS-IP65 Directional Diversity Antenna Datasheet - cover page
Brand
Hirschmann
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
2
File format
PDF
File size
85 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
9BB9670BBCF4589A164C214571D936DA
PDF
Hirschmann BAT-ANT-N-8G-DS-IP65 Directional Diversity Antenna Datasheet PDF

About this manual

This document provides product information for the Hirschmann BAT-ANT-N-8G-DS-IP65, a directional diversity antenna intended for use in Industrial Ethernet and Wireless LAN environments. The antenna operates within the 2300 MHz to 2500 MHz frequency band and features dual linear polarization with a +/- 45° slant.

What's inside

  • Product description
  • Delivery informations
  • Radio technology
  • Ambient conditions
  • Mechanical construction
  • Scope of delivery and accessories

Specifications

Frequency band2300 MHz - 2500 MHz
Polarisationdual linear, +/- 45° slant
3.dB beam width70° / 80°
Gain8.5 dBi
Antenna connectorN female
Operating temperature-40 °C to +80 °C
Protection classIP65

Frequently asked questions

What is the cable specification included with the antenna?

The delivery includes a cable with an N male to N male specification.

What is included in the scope of delivery?

The package contains the antenna, two 1m cables, mounting material, and two pigtail adapters from N to RP-SMA.
