This is a technical data sheet for the KS 79-05 window type current transformer, including product features, appearance dimensions, installation methods and other information.

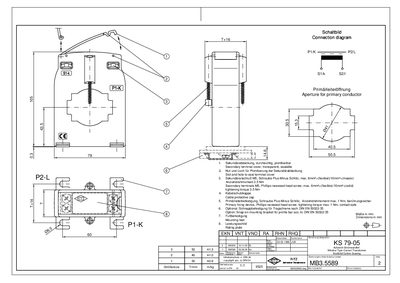

This document is a technical datasheet for the RITZ KS 79-05 Window Type Current Transformer. It provides essential information including connection diagrams, terminal specifications, and mounting options compliant with DIN EN 50022-35.
The datasheet includes a rating plate with dimensions and specifies tightening torques for secondary terminals (3.5 Nm) and primary fixing devices (max. 1 Nm). It also notes the availability of optional snap-on mounting brackets for profile bars.
| Product Type | Window Type Current Transformer |
|---|---|
| Secondary Terminals | M5, Phillips recessed head screw |
| Secondary Tightening Torque | 3.5 Nm |
| Primary Tightening Torque | max. 1 Nm |
| Mounting Standard | DIN EN 50022-35 |
The maximum tightening torque for the secondary terminals is 3.5 Nm.
The maximum tightening torque for the primary fixing device is max. 1 Nm.
