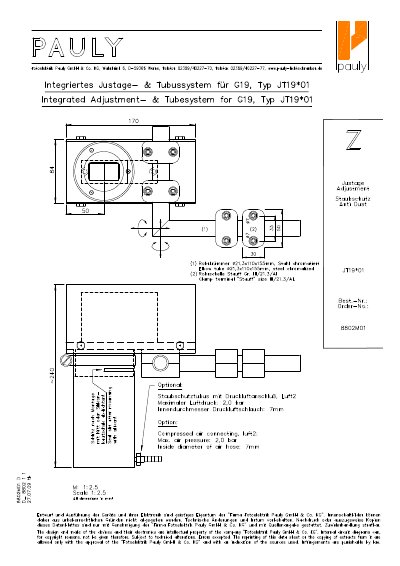

This document is a technical data sheet for the Pauly JT19*01, an integrated adjustment and tubesystem intended for use with G19 light barriers. The system includes an elbow tube made of chromized steel and a clamp terminal of size III/21.3/AL.
The document specifies optional features, including a dust protection tube with a compressed air connection. The maximum allowable air pressure for this option is 2.0 bar, and the inside diameter of the air hose is 7mm. All dimensions provided in the text are in millimeters. This manual is written in German.
| Elbow tube dimensions | 21.3x110x155mm |
|---|---|
| Clamp terminal size | III/21.3/AL |
| Max air pressure | 2.0 bar |
| Air hose inside diameter | 7mm |
The maximum air pressure is 2.0 bar.
The inside diameter of the air hose is 7mm.
The elbow tube measures 21.3x110x155mm.
