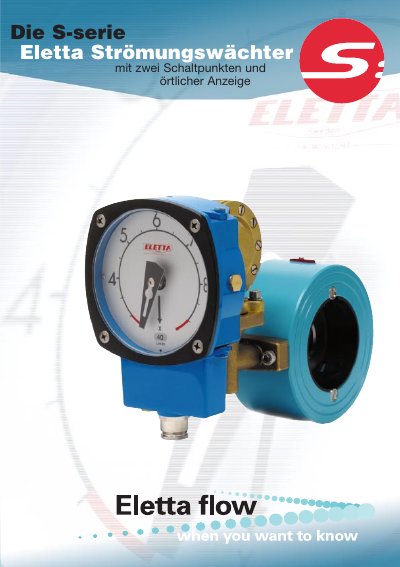

This document describes the S-serie Eletta Strömungswächter, which is a flow monitor with two switching points and local display.
This document provides technical data for the Eletta S Series flow monitors, which utilize the proven differential pressure principle for monitoring and controlling gas and liquid streams. The series is designed for reliability and economic efficiency in various industrial applications, including cooling circuits, lubrication systems, and freeze protection. This manual is written in German.
| Wetted Materials | Copper alloy, epoxy-coated cast iron, fluorinated rubber (FPM) |
|---|---|
| Maximum Pressure | 16 bar (232 PSI) |
| Maximum Temperature for Pipe Part | -GL and -FA: 120°C (248°F); -GSS and -FSS: 250°C (482°F) |
| Housing Protection | IP43 (NEMASR) std. IP65 (NEMA4) optional |
| Accuracy | +/- 5% from end value (within 20 - 80% of measuring range) |
The device has a maximum pressure rating of 16 bar.
The standard pipe section can withstand temperatures up to 120°C.
