This document introduces the features and characteristics of burster 8710 and 8711 type direct contact potentiometric displacement sensors, including application areas, working principles, technical parameters, etc.

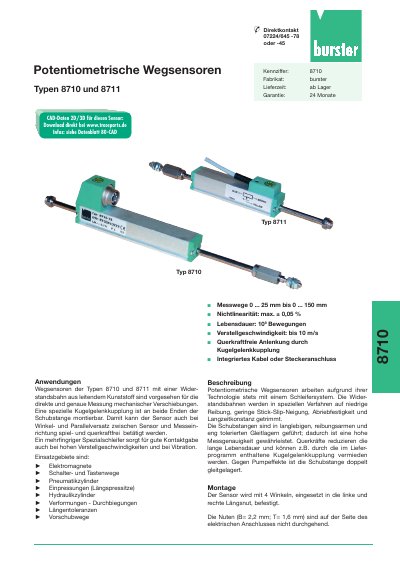

This document provides technical data for Burster 8710 and 8711 potentiometric displacement sensors. These sensors feature a conductive plastic resistance track designed for the direct and accurate measurement of mechanical displacements. They are equipped with a special ball joint coupling at both ends of the push rod, allowing for angle and parallel offset operation without side forces or friction. This manual is written in German.
| Measurement Range | 0...25 mm to 0...150 mm |
|---|---|
| Nonlinearity | max. + 0.05 % |
| Adjustment Speed | up to 10 m/s |
| Resolution | 0.01 mm |
| Protection Class | IP 40 |
The sensor is inserted into the left and right longitudinal grooves and secured with four angles.
The recommended operating current in the slider circuit is less than 0.1 pA to avoid negative effects on linearity and life.
