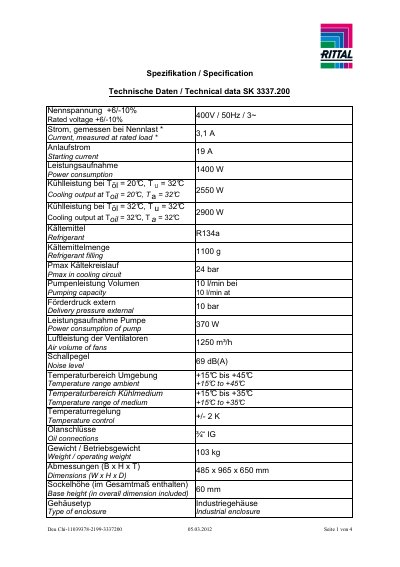

This document provides technical specifications and performance characteristics of the SK 3337.200 model. The product is an industrial cooling equipment with a rated voltage of 400V and a frequency of 50Hz. It has a current rating of 3.1A and a power consumption of 1400W. The cooling output is 2550W at a temperature of 20°C and 2900W at a temperature of 32°C. The product uses R134a refrigerant with a maximum pressure of 24bar in the cooling circuit. Additionally, it features temperature control, oil connections, and low noise.
This document provides technical specifications for the Rittal SK 3337.200, an industrial cooling unit designed for oil cooling applications. The unit operates on a rated voltage of 400V and consumes 1400W of power, delivering a cooling output of 2550W at an ambient temperature of 20°C and a medium temperature of 32°C. It utilizes R134a refrigerant with a filling of 1100g and operates within an ambient temperature range of +15°C to +45°C.
| Rated Voltage | 400V / 50Hz/3 |
|---|---|
| Power Consumption | 1400 W |
| Cooling Output (To=20, Tg=32) | 2550 W |
| Refrigerant | R134a |
| Refrigerant Filling | 1100 g |
| Pumping Capacity | 10 l/min |
| Noise Level | 69 dB(A) |
| Ambient Temperature Range | +15°C to +45°C |
| Dimensions (W x H x D) | 485 x 965 x 650 mm |
The rated voltage is 400V / 50Hz/3.
The unit uses R134a refrigerant.
The ambient temperature range is from +15°C to +45°C.
