Kuhse GH 165.61 Magnetic Device Test Certificate and Specifications

This is a test report about a magnetic device. The report lists detailed parameters and test results of the magnetic device.

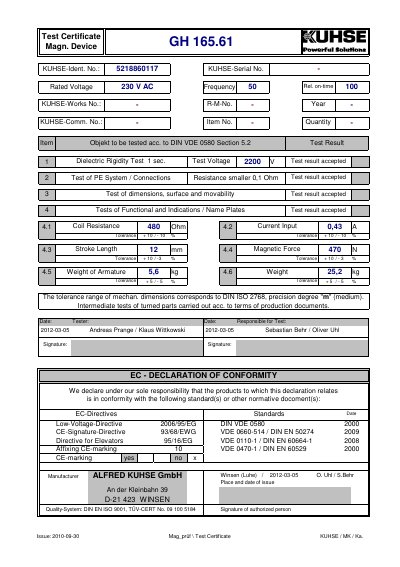

Kuhse GH 165.61 Magnetic Device Test Certificate and Specifications - cover page
Brand
Kuhse
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
20 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
482AA4C5200A3E6A71D3B2996F4A42DB
PDF
Kuhse GH 165.61 Magnetic Device Test Certificate and Specifications PDF

About this manual

This document is a test certificate for the Kuhse GH 165.61 magnetic device (Magn. Device). It confirms that the unit has passed dielectric rigidity tests, PE system checks, dimensional inspections, and functional tests according to DIN VDE 0580 standards. The testing was conducted on March 5, 2012, by Alfred Kuhse GmbH.

What's inside

  • Magn. Device
  • Dielectric Rigidity Test
  • Test of PE System
  • Tests of dimensions
  • Functional and Indications
  • Coil Resistance
  • Current Input
  • Stroke Length
  • Magnetic Force
  • Weight of Armature

Specifications

Item/ObjectMagn. Device GH 165.61
Coil Resistance480 [ohm]
Current Input0,43 [A]
Stroke Length12 [mm]
Magnetic Force470 IN
Weight of Armature5,6 |kg
Total Weight25,2 |kg

Frequently asked questions

What standards were used for testing?

The device was tested according to DIN VDE 0580 Section 5.2.

What is the tolerance for dimensions?

The tolerance range corresponds to DIN ISO 2768, precision degree "m" (medium).

Did the device pass all tests?

Yes, the test results for dielectric rigidity, PE system, dimensions, and functionality were accepted.
