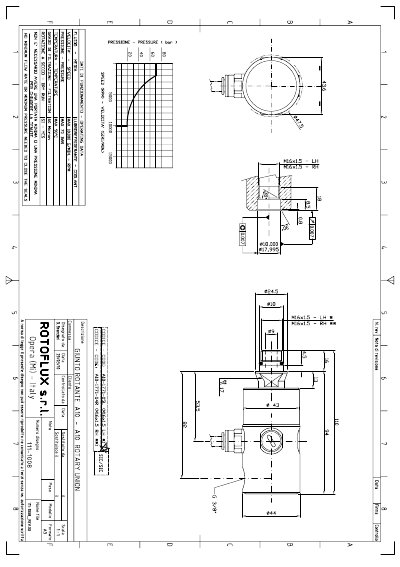

ROTOFLUX A10-1771-05L A10-1771-04R technology data - cover page
Brand
ROTOFLUX
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
1.1 MB
Published
10 July, 2012
Updated
19 July, 2012
MD5 checksum
989B1C65EA9EAB4B0233718DDCDE993C
PDF
ROTOFLUX A10-1771-05L A10-1771-04R technology data PDF

About this manual

This document provides technical operating data for the ROTOFLUX A10 series of rotary unions. It covers two specific models: A10-1771-05L (M16x1.5 LH) and A10-1771-04R (M16x1.5 RH). The device is designed for use with lubricant-refrigerant media.

What's inside

  • Operating Data
  • Media Type
  • Speed Limits
  • Pressure Limits
  • Temperature Limits
  • Filtration Requirements

Specifications

Product TypeRotary Union
MediaLubricant-Refrigerant
Maximum Speed10,000 RPM
Maximum Pressure70 BAR
Maximum Temperature90°C
Filtration Grade60 Micron

Frequently asked questions

Is a minimum flow rate required to close the seals?

No, there is no minimum flow rate needed.

Is a minimum pressure required to close the seals?

No, there is no minimum pressure needed.
