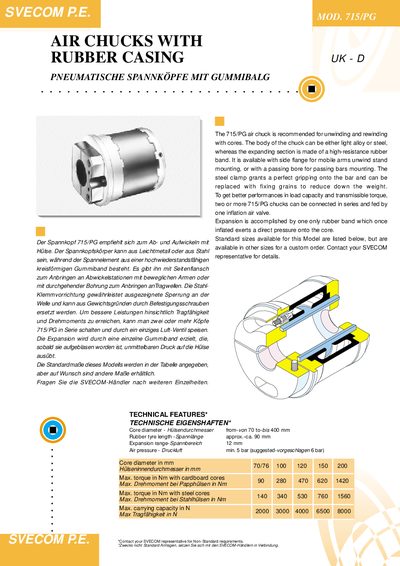

The 715/PG model is a pneumatic chuck produced by SVECOM P.E. It features a high-strength rubber band that can be used to secure reels.
The SVECOM 715/PG is an air chuck designed for unwinding and rewinding operations with cores. The device features a body made of either light alloy or steel, while the expanding section consists of a high-resistance rubber band that exerts direct pressure onto the core once inflated.
This model offers standard sizes ranging from 70 to 400 mm in core diameter, though custom orders are available. It can be equipped with a side flange for mobile arm unwind stands or a passing bore for mounting on bars. For higher load capacity and torque transmission, multiple units can be connected in series.
| Core diameter range | 70 to 400 mm |
|---|---|
| Rubber tyre length | approx. 90 mm |
| Minimum air pressure | 5 bar (suggested 6 bar) |
The body can be either light alloy or steel.
Two or more chucks can be connected in series and fed by one inflation air valve.
