Officine Orobiche 41C.A.2.M2.WP Level Switch Datasheet

This data sheet is a specification table for the 40 series level switch, including product model, maximum working pressure, working temperature, etc.

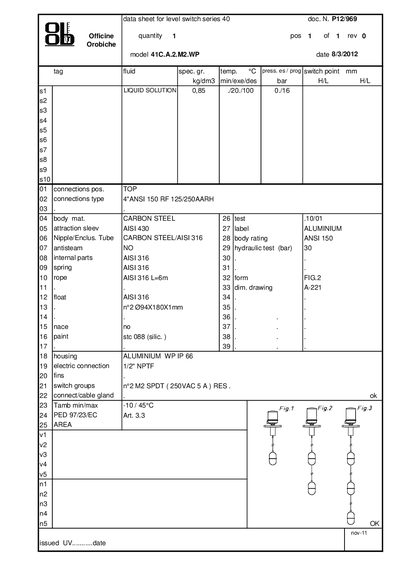

Officine Orobiche 41C.A.2.M2.WP Level Switch Datasheet - cover page
Brand
Officine
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
22 KB
Published
10 July, 2012
Updated
01 October, 2023
MD5 checksum
E882DA4D347F9310EA3921F4E074A604
PDF
Officine Orobiche 41C.A.2.M2.WP Level Switch Datasheet PDF

About this manual

This document is a datasheet for the Officine Orobiche 41C.A.2.M2.WP level switch, part of the series 40. It provides specific technical data for a liquid solution with a specific gravity of 0.85 and a temperature range of 0 to 100 degrees Celsius. The switch operates with a pressure of 0 to 16 bar and includes multiple switch points (s1 through s10) for level detection.

What's inside

  • Fluid spec.
  • Connections
  • Body material
  • Internal parts
  • Electric connection
  • Switch groups
  • Test label
  • Dimensions

Specifications

Fluid specific gravity0.85
Switch group rating250VAC 5A

Frequently asked questions

What is the maximum voltage rating for the switch groups?

The switch groups are rated for 250VAC.

Download PDF (22 KB)
