704.900.5 - Schaltelement is a switch element with a weight of 0.028 kg, screw connection, switching voltage of 500V AC, switching current of 10 A, switch system of jump switch, contact material of silver and contactors of 1 Ö + 1 S.

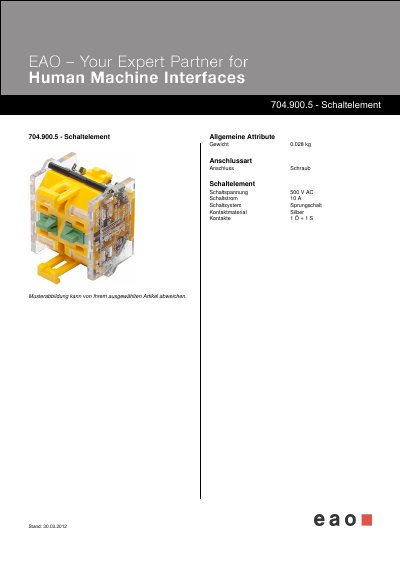

This document provides technical specifications for the EAO 704.900.5 switching element (Schaltelement). It identifies the product as a component designed for human-machine interfaces with specific connection types and contact materials.
Key electrical parameters include a switching voltage of 500 V AC and a switching current of 10A. The document also notes that the illustration may deviate from certain articles and specifies that the terminal designation insert must be ordered separately for the third switching element per button. This manual is written in German.
| Weight | 0.028 kg |
|---|---|
| Connection Type | Screw connection |
| Switching Voltage | 500 V AC |
| Switching Current | 10A |
| Switching System | Snap action switch |
| Contact Material | Silver |
The weight of the switching element is 0.028 kg.
The switching voltage is rated at 500 V AC.
The connection type for this element is screw terminal.
