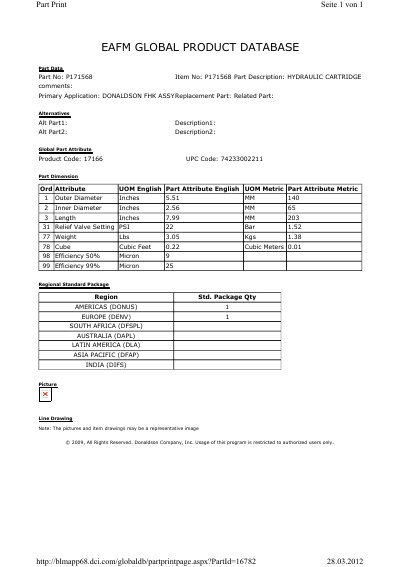

This document provides part data for the Donaldson P171568 hydraulic cartridge. It includes global product database information such as UPC codes, regional packaging standards, and a line drawing note.
The datasheet details specific technical attributes including outer diameter (5.51 inches), inner diameter (2.56 inches), length (7.99 inches), and relief valve setting (22 PSI / 1.52 Bar). It also specifies filtration efficiency at 50% for 9 microns and 99% for 25 microns.
| Outer Diameter | 5.51 inches (140 mm) |
|---|---|
| Inner Diameter | 2.56 inches (65 mm) |
| Length | 7.99 inches (203 mm) |
| Relief Valve Setting | 22 PSI (1.52 Bar) |
| Weight | 3.05 lbs (1.38 kg) |
| Efficiency @ 9 microns | 50% |
| Efficiency @ 25 microns | 99% |
This hydraulic cartridge is designed as a replacement part for the Donaldson FHK assembly.
The outer diameter of the cartridge is 5.51 inches.
The relief valve setting is 22 PSI.
