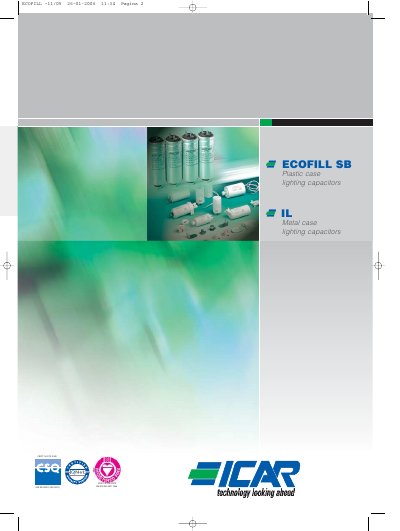

This document describes the features and characteristics of ICAR's ECOFILL SB and IL series plastic case lighting capacitors. The company utilizes advanced metallized polypropylene film technology and controls the entire manufacturing process to ensure high reliability. ICAR's capacitors have been sold in over 60 countries worldwide, and their continuous development will lead to further innovations in the future.
This document presents technical information for ICAR's range of lighting capacitors. It details the company's history in metallized polypropylene film technology and describes the manufacturing process control that ensures high reliability.
The catalog covers four main product lines: the SB 25 series (plastic case, resin filled), the KB 25 series (plastic case, dry type with blip clip), the IL series (metal case, parallel compensation), and a second IL variant for series compensation. Each section lists technical features such as temperature ranges, voltage ratings, and capacitance tolerances.
| Dielectric Material | metallized polypropylene film |
|---|---|
| Temperature Range (Plastic Case) | -40°C/+85°C |
| Temperature Range (Metal Case) | -40°C/+100°C |
| Rated Voltage | 280+250 V |
| Frequency | 50+60 Hz |
| Capacitance Tolerance (Plastic) | + 5% + 10% |
| Safety Type (Metal Case) | Type B - FP |
The capacitors use a very thin metallized polypropylene film that forms both its dielectric and its electrodes.
Yes, all IL series capacitors are equipped with an overpressure safety device (FP).
The typical dv/dt value is 10 V/us.
