PULS CS10.241 Series Power Supply User Manual

CS10.241-S1 is a C-Series 24V, 10A, Single Phase Input 1/20 Power Supply with the following features: AC 100-120 / 200-240V Auto Select Input, Efficiency up to 91.6%, Width only 60mm, 20% Output Power Reserves, Full Output Power Between -25°C and +60°C, Minimal Inrush Current Surge and 3 Year Warranty.

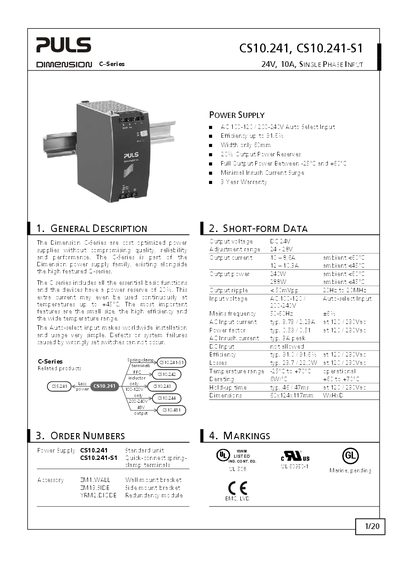

PULS CS10.241 Series Power Supply User Manual - cover page
Brand
PULS
Category
Power System Manager
Document type
User Manual
Language
English
Pages
20
File format
PDF
File size
480 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
C77177E8433B990EB771E0DBD70F19CF
PDF
PULS CS10.241 Series Power Supply User Manual PDF

About this manual

The document provides a comprehensive guide for the PULS Dimension C-Series 24V, 10A single-phase input power supplies, specifically models CS10.241 and CS10.241-S1. It highlights key features such as auto-select input voltage (100-120/200-240V), high efficiency up to 91.6%, and a compact width of only 60mm.

What's inside

  • General Description
  • Short-form Data
  • Order Numbers
  • AC-Input Specifications
  • Output Characteristics
  • Efficiency and Power Losses
  • Functional Diagram
  • Reliability and MTBF
  • Installation Instructions
  • Application Notes

Specifications

Output Voltage Nominal24V
Output Current Nominal10A (ambient <60°C)
Input Voltage RangeAC 100-120 / 200-240V Auto Select
Efficiency Max91.6%
Dimensions (WxHxD)60x124x117mm

Frequently asked questions

What is the temperature range for full output power?

Full output power is available between -25°C and +60°C.

What are the dimensions of the PULS CS10.241 power supply?

The unit measures 60mm in width, 124mm in height, and 117mm in depth.

What is the maximum output voltage of this power supply?

The adjustment range goes up to a maximum of 30V at the clockwise end position.

How long is the warranty period for this device?

The power supply comes with a 3 Year Warranty.
