This document describes the features and characteristics of the XV series gear pumps from Dauner Antriebstechnik GmbH, including mechanical parameters, rotation direction, and oil port standard.

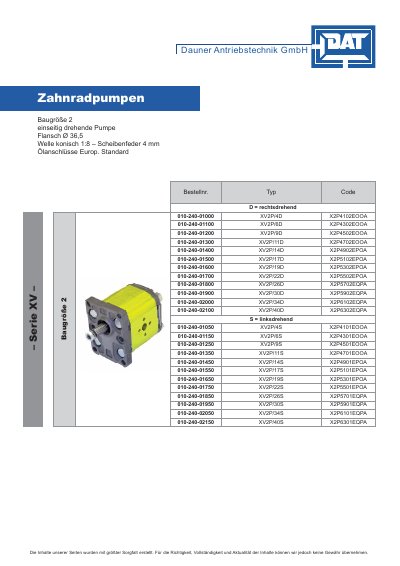

This document is a technical datasheet from Dauner Antriebstechnik GmbH describing the XV2P series of one-sided rotating gear pumps. It lists various models ranging from 4 to 40 ccm displacement with corresponding order codes.
The sheet provides detailed technical specifications, including maximum pressure ratings (up to 300 bar), weight, and dimensional data for different shaft configurations (conical or cylindrical). It also includes torque requirements for installation and a table of housing thread options. This manual is written in German.
| Displacement (Min) | 4.20 ccm3U |
|---|---|
| Displacement (Max) | 39.60 ccm3U |
| Maximum Pressure (Low) | 140 bar |
| Maximum Pressure (High) | 300 bar |
| Shaft Taper | 1:8 - Scheibenfeder 4 mm |
The maximum allowable shaft torque is 233.2 Nm.
The maximum operating pressure for the XV2P/40 model is 140 bar.
The total weight of the XV2P/40 pump is 3.800 kg.
