Technical information of SC s 6562 A Ge pump

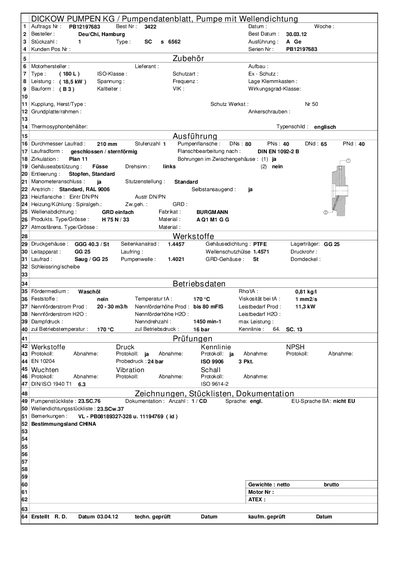

This document is a technical data sheet (Pumpendatenblatt) for the DICKOW SC s 6562 pump, identified by order number PB12197683. It provides specific details regarding the pump's construction, including the impeller diameter of 210 mm and the shaft seal manufacturer, BURGMANN.
The datasheet lists key operating parameters such as a nominal flow rate of 20-30 m³/h, a maximum operating pressure of 16 bar, and a permissible operating temperature of 170°C. It also specifies the materials used for various components, such as the pressure housing (GGG 40.3) and the shaft (1.4021), along with information on testing standards like EN 10204 and ISO 9906. This manual is written in German.
| Type | SC s 6562 |
|---|---|
| Impeller Diameter | 210 mm |
| Nominal Flow Rate | 20-30 m³/h |
| Max Operating Pressure | 16 bar |
| Permissible Operating Temperature | 170°C |
| Shaft Seal Manufacturer | BURGMANN |
| Pressure Housing Material | GGG 40.3 |
The nominal flow rate is between 20 and 30 m³/h.
The maximum permissible operating pressure is 16 bar.
