BASS KD 107958-000 Threaded Insert Datasheet

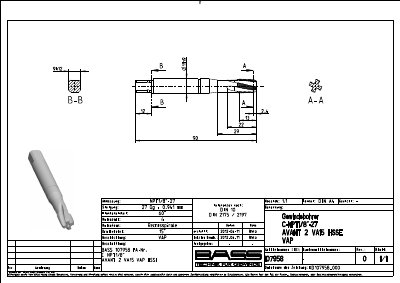

BASS KD 107958-000 Threaded Insert Datasheet - cover page
Brand
BASS
Category
Other Electronics
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
174 KB
Published
10 July, 2012
Updated
20 July, 2012
MD5 checksum
49A3D813C9AEFB4B3A87BA3A32E8CD70
PDF
BASS KD 107958-000 Threaded Insert Datasheet PDF

About this manual

This document is a technical datasheet for the BASS KD 107958-000 threaded insert. It provides specific dimensional and material information for this component.

The insert features an NPT 1/8"-27 thread with a right-hand spiral design. The surface treatment is specified as VAP, and it includes four nuts. This manual is written in German.

What's inside

  • Abmessung
  • Gewinde
  • Beschriftung
  • Notenform

Specifications

Thread SizeNPT 1/8"-27
Coating TypeVAP
Number of Nuts4

Frequently asked questions

What is the thread specification of the BASS KD 107958-000 threaded insert?

The product has an NPT 1/8-27 thread specification.

What is the pitch of the thread on the BASS KD 107958-000 threaded insert?

The thread pitch is 0.941 mm.

What is the included angle of the thread for the BASS KD 107958-000 threaded insert?

The thread has an included angle of 60 degrees.
