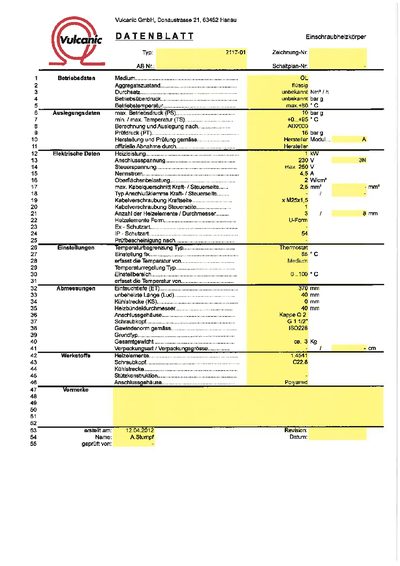

This document is a technical datasheet for the Vulcanic GmbH model 2117-01, an insertion type immersion heater. It provides operational limits such as maximum operating pressure of 40 barg and temperature of +95 °C, calculated according to AD2000 standards.
The device features three U-shaped heating elements with a diameter of 8 mm and is designed for a connection voltage of 230 V 3N. Key electrical data includes a rated power of 1 kW and a nominal current of 45 A, with an IP68 protection rating. This manual is written in German.
| Operating Pressure (Max) | 40 barg |
|---|---|
| Operating Temperature (Max) | +95 °C |
| Rated Power | 1 kW |
| Connection Voltage | 230 V 3N |
| Nominal Current | 45 A |
| Surface Load Density | 2 W/cm² |
| Number of Heating Elements | 3 |
| Heating Element Diameter | 8 mm |
| Protection Rating (IP) | 68 |
| Total Weight | ca. 39 g |
The maximum design pressure is 40 barg.
The rated heating power is 1 kW.
The required connection voltage is 230 V 3N.
