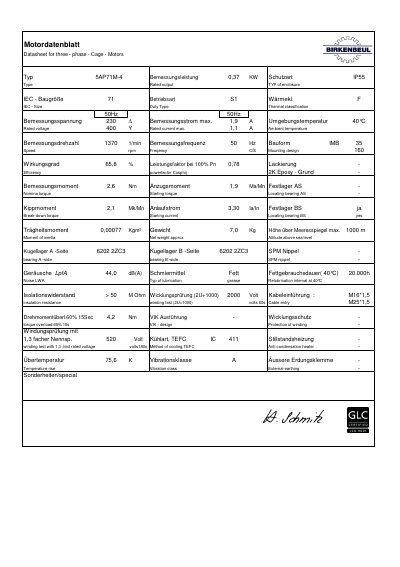

This document is a datasheet for the three-phase cage motor 5AP71M-4. The motor has a rated power of 0.37KW, protection class IP55, and is suitable for duty type S1 and thermal classification F. The rated voltage is 400V, rated current is 1.1A, and ambient temperature is 40°C. It has a rated speed of 1370rpm, frequency of 50Hz, and mounting design of IMB 35. The efficiency is 65.8%, power factor is 0.78, and it is coated with 2K epoxy. The motor features a rated torque of 2.6Nm, starting torque of 1.9Nm, locating bearing AS, starting current of 3.30A, break-down torque, locating bearing BS, moment of inertia of 0.00077Kgm², weight of 7.0Kg, maximum altitude above sea level of 1000m, noise level of 44.0dB(A), lubrication with grease, insulation resistance greater than 50M Ohm, winding test voltage of 2000V, and cable entry of M25*1.5.
This document is a technical datasheet for the Birkenbeul model 5AP71M-4, which is a three-phase cage motor. The device features an IEC frame size of 68 (Baugr6Be) with a rated output power of 0.37 kW and operates at a speed of 1370 rpm.
| Rated Output Power | 0.37 kW |
|---|---|
| Protection Class | IP55 |
| IEC Frame Size | 68 |
| Rated Voltage (Delta) | 400 V |
| Rated Current (Delta) | max. 1.9 A |
| Ambient Temperature | 40 C |
| Rated Speed | 1370 rpm |
| Efficiency | 65.8 % |
| Power Factor | 0.78 |
| Nominal Torque | 2.6 Nm |
| Starting Current | 3.30 In |
| Weight | 7.0 Kg |
The rated output is 0.37 KW.
The motor operates at a maximum ambient temperature of 40 degrees Celsius.
The grease has a usage life of 20,000 hours at 40 degrees Celsius.
