This product is a NAMUR solenoid valve with combined 5/2 and 3/2 way function with NAMUR interface. It is made of an aluminum housing and a stainless steel piston and has NBR seals. The product can be used for controlling spring return and double acting pneumatic actuators.

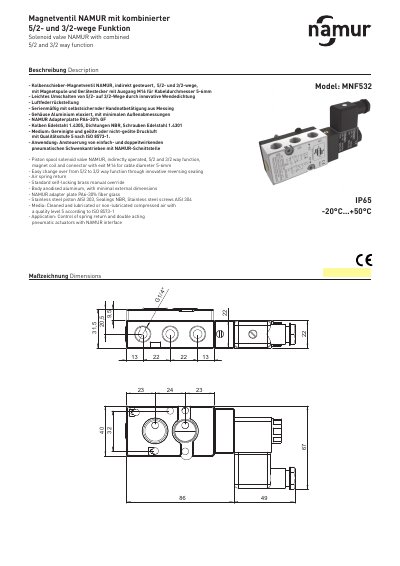

The Eurotec MNF532 is a NAMUR solenoid valve designed for controlling single-acting and double-acting pneumatic actuators. It features an innovative reversing sealing design that allows for easy switching between 5/2-way and 3/2-way functions. The valve includes an air spring return and a standard self-locking brass manual override. This manual is written in German.
| Function | 5/2 and 3/2 way |
|---|---|
| Return mechanism | Air spring return |
| Manual override | Self-locking brass |
| Body material | Anodised aluminum |
| Piston material | Stainless steel AISI 303 |
| Seal material | NBR |
| Max pressure | 10 bar |
| Temperature range | -20°C ... +50°C |
| Air flow | 950 l/min |
| Safety Integrity Level | SIL 2 |
It is a combined 5/2 and 3/2-way solenoid valve.
Cleaned and lubricated or non-lubricated compressed air with quality level 5 according to ISO 8573-1.
The valve supports DC 12V, 24V, 48V, 110V and AC 24V, 48V, 115V, 230V.
