Flow reducers for solenoid valve outlet ports and pneumatic part turn actuators protect the product against dust and dirt, they reduce the noise of the de-aerating process and they can slow the rotary motion of the valve.

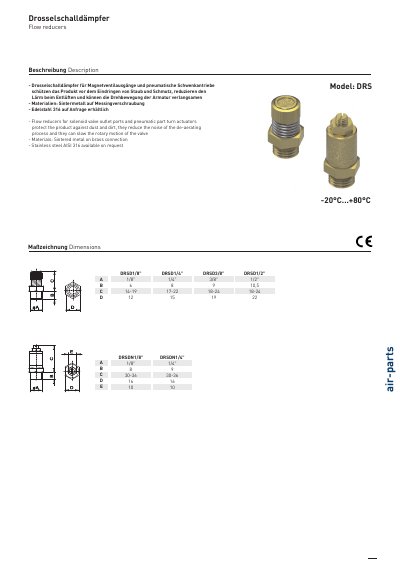

The Eurotec DRS series consists of flow reducers designed for use with solenoid valve outlet ports and pneumatic rotary actuator drives. These devices serve to protect the product against dust and dirt ingress during operation.
Additionally, the units reduce noise generated by the de-aerating process and can slow down the rotary motion of the armature. The components are constructed from sintered metal mounted on brass connections, with stainless steel AISI 316 available upon request.
| Application | Solenoid valve outlet ports and pneumatic rotary actuator drives |
|---|---|
| Function 1 | Protects against dust and dirt |
| Function 2 | Reduces noise of de-aerating process |
| Function 3 | Slows rotary motion of valve |
| Standard Material | Sintered metal on brass connection |
It protects products against dust and dirt, reduces noise during de-aerating, and can slow the rotary motion of a valve.
The standard material is sintered metal on brass connection, with stainless steel AISI 316 available on request.
