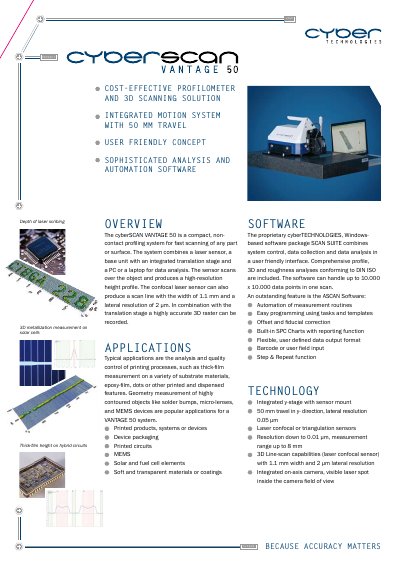

The cyberSCAN VANTAGE 50 is a compact, non-contact profiling system for fast scanning of any part or surface. The system combines a laser sensor, a base unit with an integrated translation stage and a PC or a laptop for data analysis. The sensor scans over the object and produces a high-resolution height profile. The confocal laser sensor can also produce a scan line with the width of 1.1 mm and a lateral resolution of 2 µm. In combination with the translation stage a highly accurate 3D raster can be recorded.
The cyberSCAN VANTAGE 50 is a cost-effective profilometer and 3D scanning solution designed for fast scanning of any part or surface. It combines a laser sensor, a base unit with an integrated translation stage, and a PC or laptop for data analysis to produce high-resolution height profiles.
| Lateral resolution (confocal) | 2 um |
|---|---|
| Scan line width (3DLine-scan) | 1.1 mm |
| Measurement range | up to 8 mm |
| Resolution (confocal) | down to 0.01 um |
| Y-axis travel limit | 50 mm |
The confocal laser sensor has a lateral resolution of 2 um.
Yes, in combination with the translation stage, a highly accurate 3D raster can be recorded.
The system includes the proprietary SCAN SUITE and ASCAN Software for automation.
