FUSS-EMV 3AFU400-xxx technology data

This product is a three-phase output filter that is used to reduce the voltage slew rate at the output of frequency converters to values below 500 V/µs.

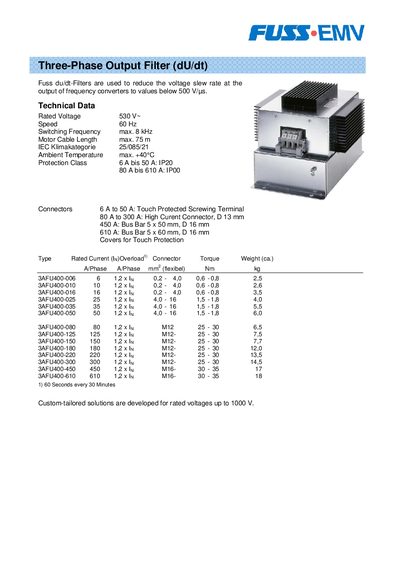

FUSS-EMV 3AFU400-xxx technology data - cover page
Brand
FUSS-EMV
Category
Industrial Supply
Document type
Datasheet
Language
English
Pages
3
File format
PDF
File size
138 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
BCF71A27BBA985C2BF43C438C677FBF1
PDF
FUSS-EMV 3AFU400-xxx technology data PDF

About this manual

This document provides technical specifications for FUSS-ENMV du/dt filters, which are designed to reduce the voltage slew rate at the output of frequency converters to values below 500 V/us. The filters are available in various rated current sizes ranging from 6A to 610A.

What's inside

  • Technical Data
  • Type Rated Current
  • Dimensions 6 A to 50 A
  • Dimensions 80 A to 610 A
  • Mounting
  • Connectors

Specifications

Rated Voltage530 V~
Speed60 Hz
Switching Frequencymax. 8 kHz
Motor Cable Lengthmax. 75 m
Ambient Temperaturemax. +40°C

Frequently asked questions

What is the maximum motor cable length supported by this filter?

The filter supports a maximum motor cable length of 75 meters.

What is the maximum rated voltage for custom-tailored solutions?

Custom-tailored solutions are developed for rated voltages up to 1000 V.

What is the maximum ambient temperature for operation?

The maximum ambient temperature is +40°C.
