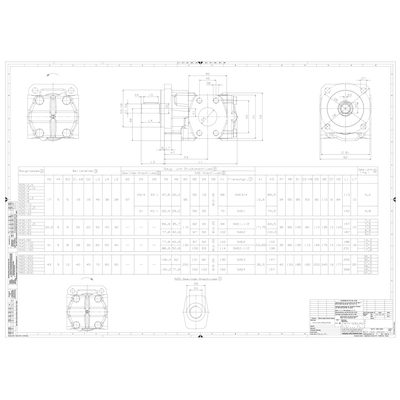

This document provides technical data and a drawing for the Rickmeier R.5/...FL-Z component. It includes specific dimensional tables with upper and lower limits for various parts of the component.
The document specifies manufacturing tolerances according to DIN standards, such as DIN 7167 for tolerances and DIN 1680 for general tolerances for cast iron parts. It also references standards for thermal cutting and edge quality. This manual is written in German.
| Manufacturer | Rickmeier GmbH |
|---|---|
| Location | Balve, Germany |
| Tolerance Standard | DIN 7167 |
| General Tolerance Standard | DIN 1680 |
