Stuewe GF 58-21 GF 90-21 GF 150-21 Equal technology data

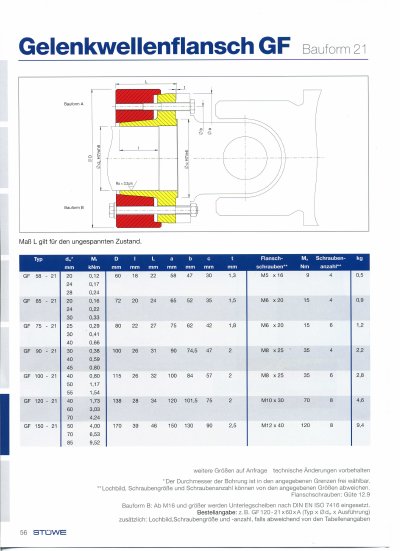

Stuewe GF 58-21 GF 90-21 GF 150-21 Equal technology data - cover page
Brand
Stuewe
Document type
Product Leaflet
Language
German
Pages
1
File format
PDF
File size
561 KB
Published
10 July, 2012
Updated
10 July, 2012
MD5 checksum
433D0156F9626578688F7A07BDF66FC6
PDF
Stuewe GF 58-21 GF 90-21 GF 150-21 Equal technology data PDF

About this manual

This document provides technical specifications for Stuewe Gelenkwellenflansch (universal joint flange) models ranging from GF 22cm to GF 150cm. The data covers two construction types, Bauform A and Bauform B, detailing flange dimensions, hole patterns, and screw specifications. This manual is written in German.

What's inside

  • Bauform A
  • Bauform B
  • Flanschschrauben
  • Schraubenanzahl
  • Bohrungsdurchmesser
  • Bestellangabe
  • Unterlegscheiben
  • technische Anderungen

Specifications

Screw QualityQuality 12.9
Washer StandardDIN EN ISO 7416
Ordering ExampleGF 120-21 x60xA

Frequently asked questions

What is the bolt size and quantity for the GF 120 model?

The GF 120 model uses M10 x 30 bolts, and the quantity is 8.

What bolt size and quantity are required for the GF 150 model?

The GF 150 model requires M12 x 40 bolts, and the quantity is 8.
