TBMA S-AX 250/I/PN10 Cell Wheel Chute Technical Specification

This document is about S-AX 250/I/PN10 type cell wheel gate product technical specifications.

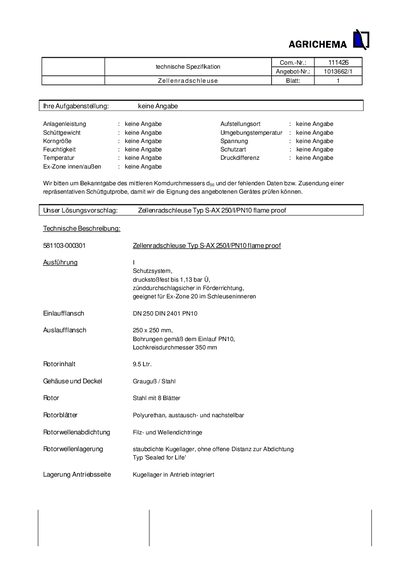

TBMA S-AX 250/I/PN10 Cell Wheel Chute Technical Specification - cover page
Brand
TBMA
Document type
Product Leaflet
Language
German
Pages
2
File format
PDF
File size
24 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
BF949E7C12C58E2917AA81D68D441046
PDF
TBMA S-AX 250/I/PN10 Cell Wheel Chute Technical Specification PDF

About this manual

This document is a technical specification for the TBMA S-AX 250/I/PN10 cell wheel chute (Zellenradschleuse). The unit features a DN 250 flange connection with a rotor capacity of 9.5 liters and is constructed from gray cast iron and steel. This manual is written in German.

What's inside

  • Technische Beschreibung
  • Schutzsystem
  • Antrieb
  • Einsatzbedingungen

Specifications

Flange SizeDN 250 DIN 2401 PN10
Motor Power0.37 kW
Rotor Speed27 rpm
Voltage/Frequency230/400 V, 50 Hz
Protection ClassIP 55

Frequently asked questions

What is the operating temperature range?

The device operates in an ambient temperature range of -20 to +40 °C.

What is the maximum product temperature for this chute?

The design assumes a maximum product temperature of 40°C.

What is the required minimum ignition temperature for the dust cloud?

The dust cloud must have a minimum ignition temperature above 210°C.

Download PDF (24 KB)
