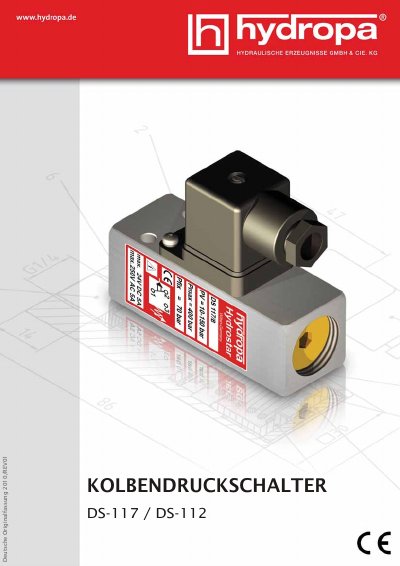

This document provides technical specifications for the Hydropa DS-117 and DS-112 piston pressure switches. These devices operate on a piston-spring principle and are designed for precise pressure monitoring in hydraulic systems. The switches feature an electromechanical switch element and are available with various connection types, including pipe thread and flange options. This manual is written in German.
| Piston Diameter | 24mm or 65mm |
|---|---|
| Switching Pressure Ranges | 5-70 bar, 10-150 bar, 20-240 bar, 20-350 bar |
| Max Pressure (Standard Seal) | 500 bar |
| Operating Temperature | -40°C to +90°C |
| Switching Element | Electromechanical switch CEE 24; VDE 0630 |
| Housing Material | Unlacquered Aluminum |
The pressure switch operates on a piston-spring principle where the piston moves against a spring plate to actuate the microswitch.
The setting is adjusted by turning the adjustment element; turning counter-clockwise lowers the pressure, and clockwise raises it.
The maximum pressure for the standard seal version is 500 bar.
