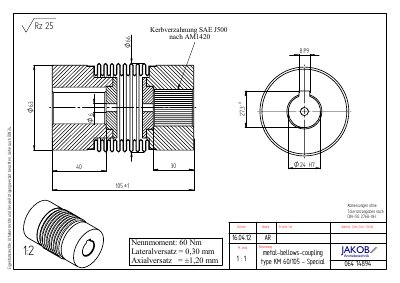

This document is the technical parameter table of KM 60/105 coupling of Jakob Antriebstechnik
This document provides technical specifications for the JAKOB KM 60/105 model. It details specific mechanical parameters including a nominal moment of 60 Nm.
The data sheet also specifies lateral and axial offsets (versatz) as well as references to applicable standards such as SAE JS00 and DIN 2768-mH. This manual is written in German.
| Nominal Moment (Nennmoment) | 60 Nm |
|---|---|
| Lateral Offset | 0.30 mm |
| Axial Offset | 1.20 mm |
The rated torque is 60 Nm.
The lateral offset is 0.30 mm.
