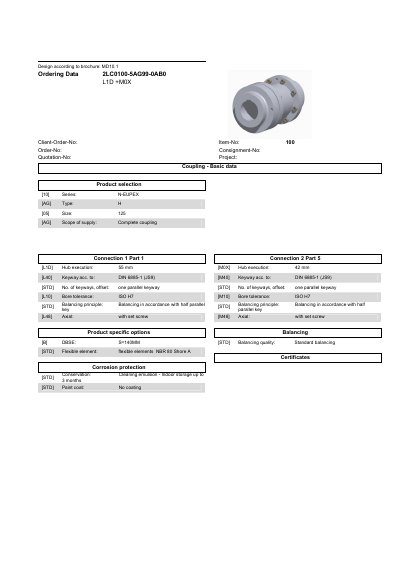

FLENDER 2LC0100-5AG99-0AB0 technology data

This is a n-eupex coupling with the model h and size 125

Brand: FLENDER
Document type: Product Leaflet
Language: English
Pages: 1
File format: PDF
File size: 19 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 88F50F6319D2C88CDB6C7DC96E72A2F9
PDF: FLENDER 2LC0100-5AG99-0AB0 technology data PDF

About this manual

This document provides technology data and ordering details for a specific model of the FLENDER N-EUPEX coupling series. The item is identified by order number 2LC0100-5AG99-0ABO and corresponds to size 125, Type H.

The coupling features flexible elements made of NBR with 80 Shore A hardness. It includes parallel keyways according to DIN 6885-1 for both connections, with hub executions of 55mm and 42mm respectively. The bore tolerance is specified as ISO H7.

What's inside

Ordering Data
Product selection
Connection details
Hub execution
Keyway specifications
Balancing principle
Flexible element material

Specifications

Series	N-EUPEX
Type	H
Size	125
Flexible element material	NBR 80 Shore A
Connection 1 Hub execution	55mm
Connection 2 Hub execution	42mm
Keyway standard	DIN 6885-1
Bore tolerance	ISO H7

Frequently asked questions

What is the series and type of this coupling?

The coupling belongs to the N-EUPEX series and is Type H.

What is the size of this coupling?

The size of this coupling is 125.

What is the scope of supply for this item?

The scope of supply includes a complete coupling.
