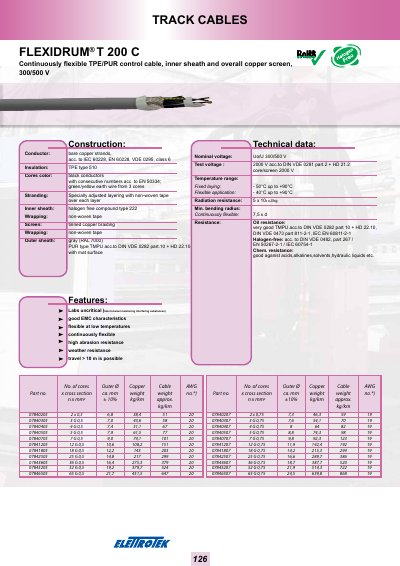

FLEXIDRUM® T 200 C is a continuously flexible TPE/PUR control cable with inner sheath and overall copper screen. It is suitable for use in mobile machine control.
The Flexidrum T 200 C is a continuously flexible control cable made of TPE/PUR materials, featuring an inner sheath and an overall copper screen. It is designed for both fixed installation and flexible applications, offering good oil resistance, temperature stability, and bending performance. The cable construction includes bare copper conductors, TPE insulation, numbered black conductors, a green/yellow earth wire, a non-woven fabric layer, a copper screen, and a gray PUR outer sheath.
| Nominal voltage | 300/500 V |
|---|---|
| Test voltage | 2000 V |
| Temperature range (Fixed laying) | - 50°C up to +90°C |
| Temperature range (Flexible application) | - 40°C up to +90°C |
| Radiation resistance | 5 x 10 6 cJ/kg |
| Min. bending radius (Continuously flexible) | 7,5 x d |
| Conductor material | bare copper strands |
| Insulation type | TPE type 510 |
| Outer sheath type | gray PUR type TMPU |
Yes, it is halogen-free according to DIN VDE 0482, EN 50267-2-1, and IEC 60754-1.
The cable has very good oil resistance according to DIN VDE 0282 and IEC EN 60811-2-1.
Yes, it is suitable for flexible applications with a minimum bending radius of 7.5 times the diameter.
