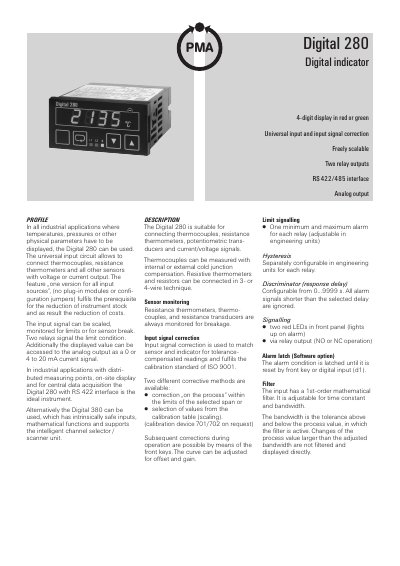

The PMA Digital 280 is a digital indicator with a 4-digit red or green display. It features universal input and input signal correction, freely scalable display, two relay outputs, RS422/485 interface, and analog output. It is suitable for displaying temperatures, pressures, or other physical parameters in industrial applications.
The PMA Digital 280 is a universal digital indicator designed for industrial applications where temperatures, pressures, or other physical parameters need to be displayed. It features a universal input circuit capable of connecting thermocouples, resistance thermometers, and sensors with voltage or current output without requiring plug-in modules or configuration jumpers. The device allows for input signal scaling, limit monitoring, and provides two relay outputs for alarm signaling.
| Display | 4-digit LED in red or green |
|---|---|
| Input Resistance | > 1 MΩ |
| Display Error | < 0.05% + 1 digit |
| Resolution | approx. 20,000 steps |
| Measuring Sequence | 200 ms |
| Operating Temperature | 0...+60°C |
| Storage Temperature | -20...+70°C |
| Power Consumption | approx. 5 VA |
| Weight | approx. 0.4 kg |
It is suitable for connecting thermocouples, resistance thermometers, potentiometric transducers, and current/voltage signals.
No, it is a one version for all input sources, fulfilling the prerequisite for the reduction of instrument stock.
The measuring sequence is 200 ms.
