This manual introduces the features and characteristics of the JV/JVA 10-27 vibrator, including safety, storage, handling, installation, electrical connection, setting centrifugal force, maintenance, spare parts, special design, etc.

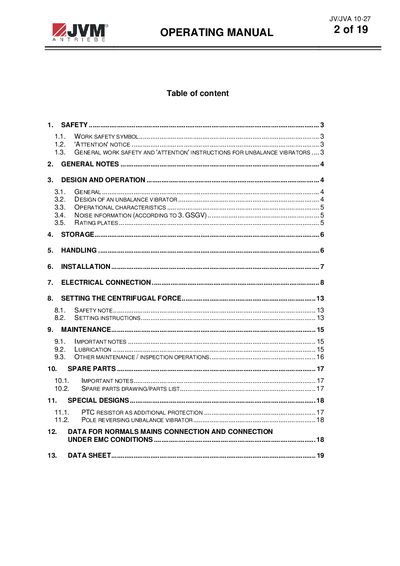

This document is the operating manual for the ZIVM JV/JVA 10-27 unbalance vibrator. It provides essential safety instructions, design details, and operational characteristics for the device, which is a three-phase squirrel-cage motor used to generate vibratory motions via rotary centrifugal weights. The manual emphasizes strict adherence to safety regulations and proper installation procedures to prevent injury and equipment damage.
| Motor Type | Three-phase squirrel-cage motor |
|---|---|
| Mounting Surface Requirement | Metallically bright and free from grease |
| Screw Quality Class | 8.8 |
It must be made clear which person is responsible for the work so that safety is not impaired.
No, it must never be operated without the covers of the centrifugal weights due to the danger of injury.
After the first 50 hours of operation, the fixing screws must be retightened to the correct tightening torque.
