IMM 40/A - 100/B is a T.E.I. submersible pump with a power range of 0.08 - 4.43 kW, a maximum flow rate of 1200 m³/h and a maximum head of 8.6 m. It is suitable for the transport of liquids in cleaning systems, emulsions and cutting fluids.

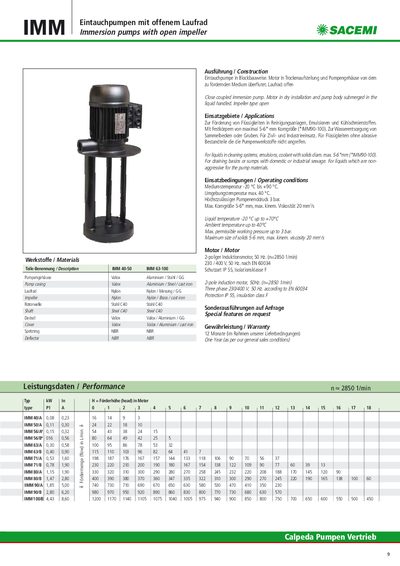

This document provides technical specifications for Sacemi immersion pumps with open impellers, specifically models IMM 40/A through IMM 100/B. The pumps are designed for use in cleaning systems, emulsions, coolants, and for draining basins or sumps. They feature a close-coupled design with the motor in dry installation and the pump body submerged in the liquid.
| Impeller type | open |
|---|---|
| Motor type | 2-pole induction motor |
| Frequency | 50 Hz |
| Speed | 2850 1/min |
| Max. permissible working pressure | 3 bar |
| Max. size of solids | 5-6 mm |
| Liquid temperature range | -20 °C to +70°C |
| Ambient temperature | up to 40°C |
The pumps can handle solids with a diameter up to 5-6 mm.
The medium temperature must not exceed +70°C.
