The document describes the features and characteristics of different models in the RZ series, including parameters such as A, B, C, D, E, F, G, H, K, L, M, N, O, and kg.

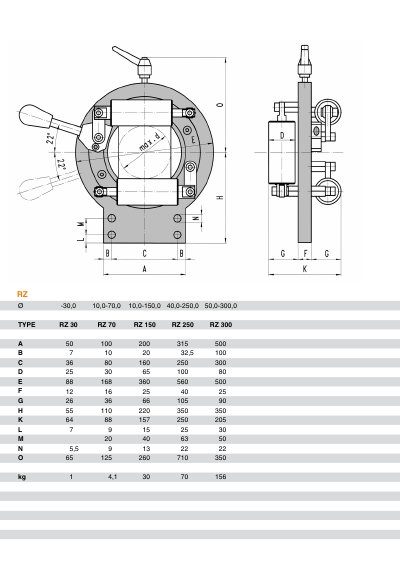

This document provides technical specifications for the RZ series of concentric roller guides. It lists dimensional parameters (A through O) and weight information for five specific models: RZ 30, RZ 70, RZ 150, RZ 250, and RZ 300.
The guide is designed for industrial machinery applications requiring concentric adjustment. The document includes a bilingual title indicating the product name in Chinese ('中心调节滚轮导轨'), German ('RZ Zentrisch verstellbare Rollenführung'), French ('Guidage à galets avec réglage concentrique'), and English. This manual is written in Chinese.
It is a concentric roller guide with an adjustable mechanism.
