This is an electric motor data sheet. The motor model is 120412-P-0291. The power is 11kW, the speed is 1470rpm, the voltage is 230/400V and the efficiency is 90.3%.

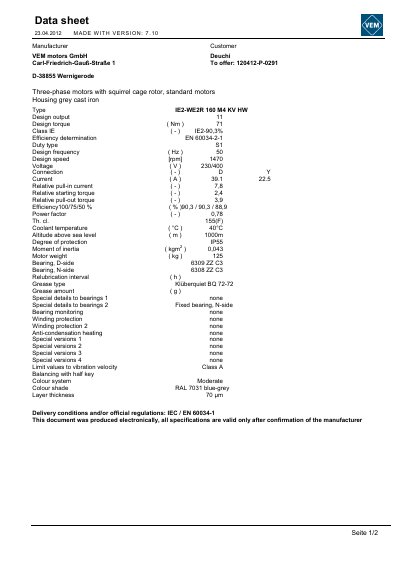

This document is a technical datasheet for the VEM IE2-WE2R 160 M4 KV HW, a standard three-phase induction motor with a squirrel cage rotor. The motor features a grey cast iron housing and is designed for operation at 50 Hz with a rated speed of 1470 rpm.
| Type | IE2-WE2R 160 M4 KV HW |
|---|---|
| Duty Type | S1 |
| Design Speed | 1470 rpm |
| Voltage | 230/400 V |
| Efficiency at 100% Load | 90.3% |
| Mounting Position | IMB5 |
| Flange Size | FF 300 [A 350] |
The design output is 11 Nm.
