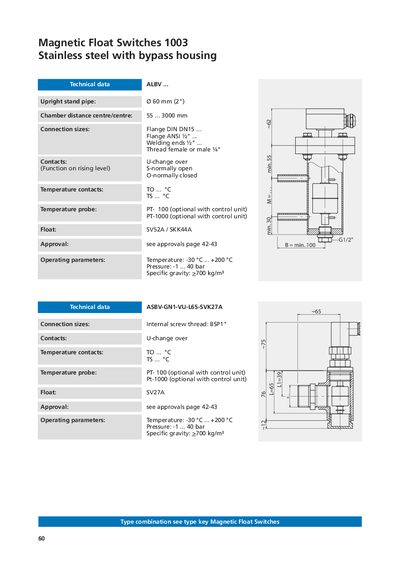

Magnetic Float Switches, type 1003, stainless steel with bypass housing
This document provides technical specifications for KFG Magnetic Float Switches, specifically the ALBV series with bypass housing and the ASBV-GN1-VU-L65-SVK27A model. The switches are constructed from stainless steel and designed for use in upright stand pipes or internal screw thread applications.
Key operating parameters include a temperature range of -30 °C to +200 °C and pressure limits between -1 and 40 bar. The devices support various connection sizes including Flange DIN, Flange ANSI, welding ends, and threaded connections (BSP). They feature change-over contacts with options for normally open or normally closed states.
| Material | Stainless steel with bypass housing |
|---|---|
| Stand pipe size (ALBV) | @ 60 mm (2") |
| Chamber distance centre/centre | 55 ... 3000 mm |
| Thread size (ASBV) | BSP1" |
| Operating Temperature | -30 °C ... +200 °C |
| Operating Pressure | -1 ... 40 bar |
| Specific gravity limit | >700 kg/m³ |
The operating temperature range is from -30 °C to +200 °C.
Yes, temperature probes PT-100 and PT-1000 are optional with the control unit.
The switches feature U-change over contacts, which can be configured as normally open or normally closed.
