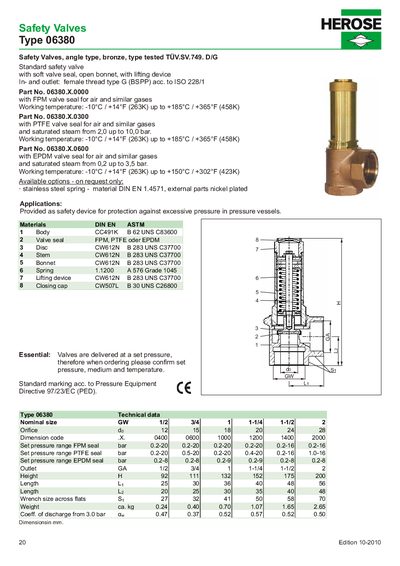

This document provides technical data for the HEROSE Type 06380 series of standard safety valves. These bronze valves are designed as protection devices against excessive pressure in pressure vessels and feature an open bonnet with a lifting device.
The datasheet specifies available options including FPM, PTFE, and EPDM valve seals suitable for air, gases, and saturated steam across various temperature ranges. It lists material compositions according to DIN EN and ASTM standards.
| Thread type | female thread type G (BSPP) acc. to ISO 228/1 |
|---|---|
| Working temperature (FPM seal) | -10°C / +14°F up to +185°C / +365°F |
| Body Material | CC491K B62 UNS C83600 |
| Spring Material | 1.1200 A 576 Grade 1045 H |
| Nominal sizes | GW 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 |
They are provided as safety devices for protection against excessive pressure in pressure vessels.
The valve operates from -10°C up to +185°C.
It weighs approximately 0.24 kg.
