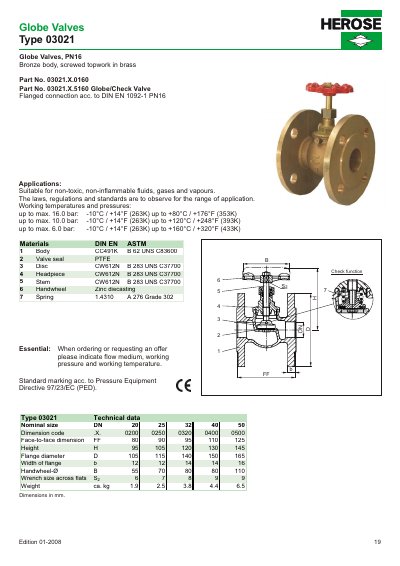

This document provides technical specifications for the HEROSE Type 03021 Globe Valve, available with a bronze body and brass screwed topwork or flanged connections. The valve is designed for use with non-toxic, non-inflammable fluids, gases, and vapours, adhering to relevant safety regulations and standards.
| Pressure Rating | PN16 |
|---|---|
| Body Material | Bronze (CC491K) |
| Seal Material | PTFE |
| Max Temperature (16 bar) | +80°C / +176°F |
| Max Temperature (10 bar) | +120°C / +248°F |
| Max Temperature (6 bar) | +160°C / +320°F |
It is suitable for non-toxic, non-inflammable fluids, gases and vapours.
The valve complies with the Pressure Equipment Directive 97/23/EC (PED).
