IXXAT 1.04.0075.03000 CAN-Terminator Datasheet

This document is the official manual of IXXAT CAN-Termination 120 Ohm

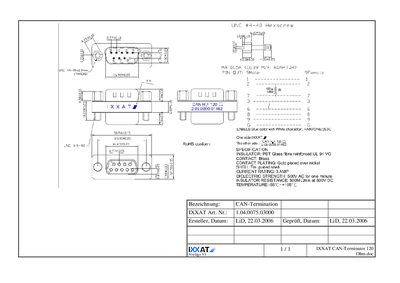

IXXAT 1.04.0075.03000 CAN-Terminator Datasheet - cover page
Brand
IXXAT
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
166 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
B70843E4F516D13A61DFD97662D211D2
PDF
IXXAT 1.04.0075.03000 CAN-Terminator Datasheet PDF

About this manual

This document is a datasheet for the IXXAT 1.04.0075.03000 CAN-Terminator. It provides specific technical data regarding the component's construction and performance capabilities.

Key specifications include a current rating of 3 Amps and a dielectric strength of 500V AC. The device operates within a temperature range of -55°C to +105°C and features a PBT glass fibre reinforced insulator.

What's inside

  • Specification
  • Insulator
  • Contact
  • Shell
  • Current Rating
  • Dielectric Strength
  • Insulator Resistance
  • Temperature
  • Labels
  • RoHS

Specifications

Current Rating3 AMP
Dielectric Strength500V AC for one minute
Operating Temperature-55°C ~+105° C
Insulator MaterialPBT Glass fibre reinforced UL 94 VO
Contact MaterialBrass
Contact PlatingGold plated over nickel
Shell MaterialTin plated shell

Frequently asked questions

What is the current rating of this terminator?

The device has a current rating of 3 AMP.

What is the dielectric strength specification?

It withstands 500V AC for one minute.
