The X-130-S is a load cell used for elevator load measurement, with a large measuring range of 12 and 25kN. It is suitable for measuring loads at the fixpoint or under the elevator cabin. The product features a standardized design and a wide range of measuring capabilities, allowing it to cover various elevator car weights and capacities. The solid steel housing and IP67 protection ensure trouble-free operation in harsh environments.

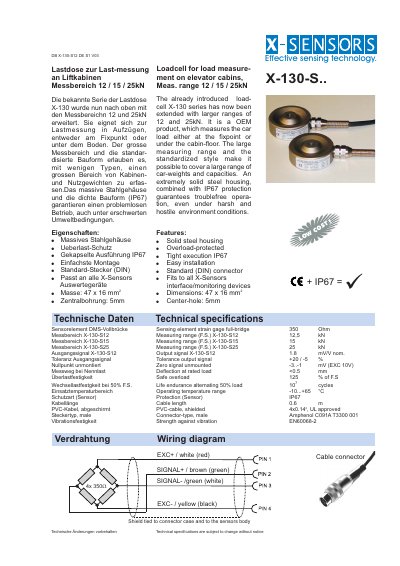

The document describes the i-SENSORS X-130 series of load cells, which has been extended to include measuring ranges of 12 and 25 kN. These devices are intended for OEM applications to measure car loads in elevators, either at a fixed point or under the cabin floor.
| Output signal (X-130-S12) | 1.8 mV/V nom. |
|---|---|
| Safe overload | 125 % of F.S |
| Life endurance alternating 50% load | 10° cycles |
| Operating temperature range | -10..+65 °C |
It measures car loads in elevators either at a fixed point or under the cabin floor.
