Ecoflex 15 is a 50-ohm coaxial cable for the frequency range DC-6 GHz. This cable combines the excellent attenuation values of inflexible 1/2'' cables with massive inner conductors with the well-known good flexibility of RG coaxial cables with Litz inner conductors. Modern production methods and the use of a low-loss PE-LLC dielectric set new standards in this cable class. The result is a highly flexible and very low-loss coaxial cable for demanding applications in telecommunications and signal processing. An EMI-compliant shielding attenuation of >90 dB / 1 GHz is achieved by a double shielding with overlapping copper foil and overlying copper braid. The foil is PE-coated and thus protected against cracks at too small a bending radius.
The Hirschmann Ecoflex 15 is a new 50 Ohm coaxial cable designed for the frequency range of DC to 6 GHz. Its unique construction combines the excellent attenuation values of bend-free 1/2" cables with solid inner conductors with the known flexibility of RG coaxial cables with stranded inner conductors. Modern production processes and the use of low-loss PE-LLC dielectric set new standards in this cable class, resulting in a highly flexible and very low-loss coaxial cable for demanding applications in telecommunications and radio technology. An EMC-compliant screen attenuation of >90 dB / 1 GHz is achieved through a double shielding with overlapping copper foil and overlying copper braid. The foil is PE-coated and thereby protected against cracks at too small a bending radius.

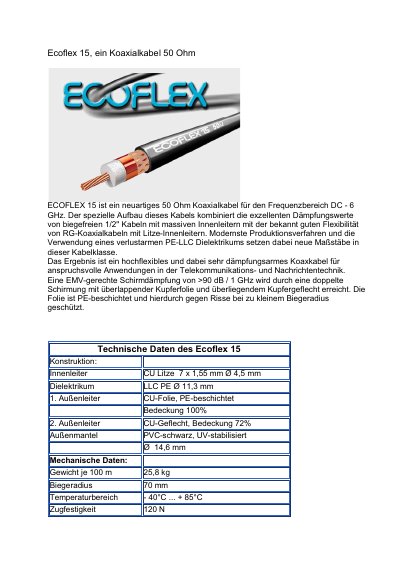

The document provides detailed technical data including construction details, mechanical data such as weight and bending radius, and electrical data like impedance and capacitance. It also lists attenuation values in dB/100 m at various frequencies from 5 MHz to 6000 MHz and maximum power handling capabilities at 40°C. This manual is written in German.
| Impedance | 50 Ohm |
|---|---|
| Frequency Range | DC - 6 GHz |
| Inner Conductor | CU Litze 7 x 1,55 mm |
| Dielectric | LLC PE |
| Outer Jacket | PVC-schwarz, UV-stabilisiert |
| Weight per 100m | 25,8 kg |
| Bending Radius | 70 mm |
| Temperature Range | -40°C ... + 85°C |
| Tensile Strength | 120 N |
| Attenuation at 1 GHz | >90 dB |
| Attenuation at 1000 MHz | 9,8 dB/100 m |
| Attenuation at 6000 MHz | 28,8 dB/100 m |
The Ecoflex 15 is designed for the frequency range of DC to 6 GHz.
The impedance of the Ecoflex 15 cable is 50 Ohm.
The maximum power handling at 100 MHz is 2000 Watts.
